F1206HI7000V024T

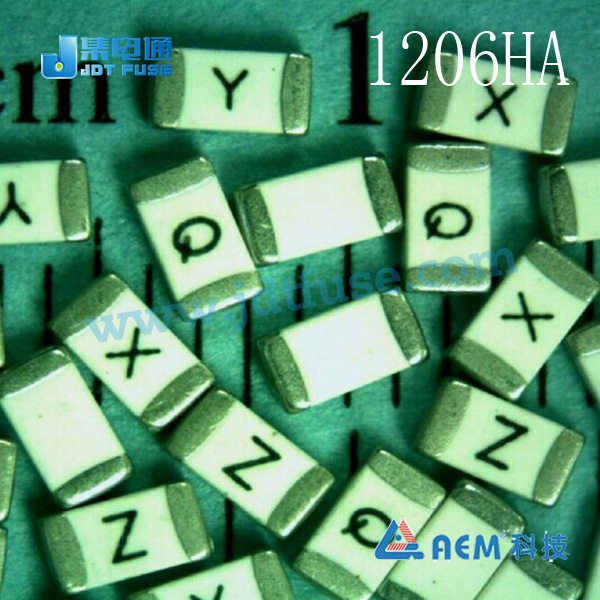

AEM一次性保險(xiǎn)絲1206系列
| 型號 |
Current Rating (A) |
Voltage Rating (VDC) |
Interrupting Ratings | Nominal Cold DCR(Ω)1 |
Nominal I2t (A2s)2 |
Marking (Optional)3 |
Data Sheet |
|---|---|---|---|---|---|---|---|
| F1206HI1000V063T | 1.0 | 63 | 50A at rated voltages | 0.340 | 0.11 | E |
 |
| F1206HI2500V032T | 2.5 | 32 | 50A at rated voltages | 0.065 | 1.19 | J |
|
| F1206HI6000V024T | 6.0 | 24 | 80A at rated voltage | 0.013 | 12.5 | O |
|
| F1206HI7000V024T | 7.0 | 24 | 80A at rated voltage | 0.010 | 30.0 | P |
|
| F1206HI2000V063T | 2.0 | 63 | 50A at rated voltages | 0.090 | 0.80 | I |
|
| F1206HI1500V063T | 1.5 | 63 | 50A at rated voltages | 0.150 | 0.33 | G |
|
| F1206HI3000V032T | 3.0 | 32 | 50A at rated voltages | 0.035 | 1.35 | K |
|
| F1206HI3500V032T | 3.5 | 32 | 50A at rated voltages | 0.029 | 1.84 | L |
|
| F1206HI4000V032T | 4.0 | 32 | 50A at rated voltages | 0.023 | 2.74 | M |
|
| F1206HI4500V032T | 4.5 | 32 | 50A at rated voltages | 0.021 | 3.20 | T |
|
| F1206HI5000V032T | 5.0 | 32 | 50A at rated voltages | 0.017 | 5.50 | N |
|
| F1206HI8000V024T | 8.0 | 24 | 80A at rated voltage | 0.009 | 60.0 | R |
|
